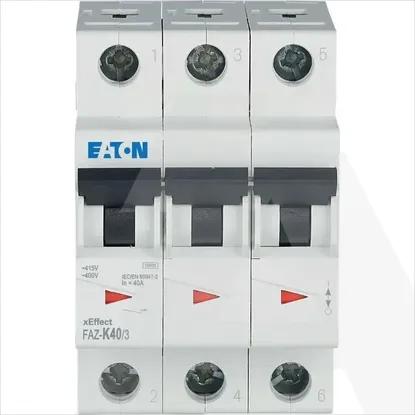

FAZ-K40/3
Code: 1047342
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Number of protected poles3
Release characteristicK
Rated voltage400V
Rated insulation voltage Ui440V
Number of poles (total)3
Voltage typeAC
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Power loss12.1W
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Built-in depth70.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current40A
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Flush-mounted installationNo
Over voltage category3
Pollution degree2
Additional equipment possibleYes
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Width in number of modular spacings3
Ambient temperature during operating-25 - 75°C
Explosion-proofNo
