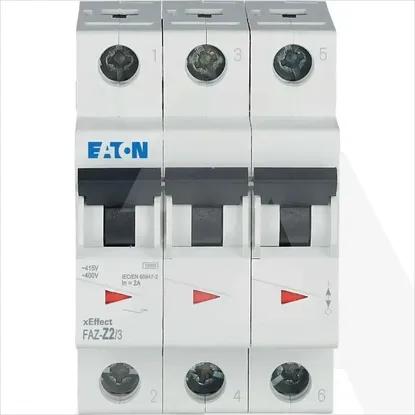

FAZ-Z2/3
Code: 1047345
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicZ
Number of protected poles3
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Rated current2A
Rated insulation voltage Ui440V
Flush-mounted installationNo
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Built-in depth70.5mm
Pollution degree2
Current limiting class3
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Voltage typeAC
Degree of protection (IP)IP20
Power loss11.1W
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Explosion-proofNo
