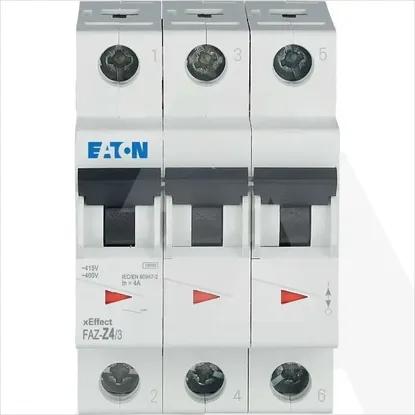

FAZ-Z4/3
Code: 1047347
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Number of poles (total)3
Release characteristicZ
Number of protected poles3
Rated insulation voltage Ui440V
Rated current4A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Flush-mounted installationNo
Current limiting class3
Concurrently switching neutral conductorNo
Power loss12W
Pollution degree2
Over voltage category3
Frequency50 - 60Hz
Width in number of modular spacings3
Additional equipment possibleYes
Explosion-proofNo
Ambient temperature during operating-25 - 75°C
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Voltage typeAC
Connectable conductor cross section multi-wired1 - 25mm²
