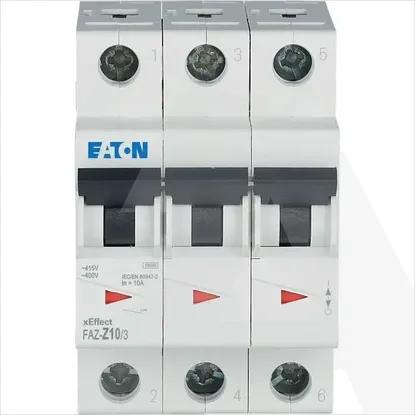

FAZ-Z10/3
Code: 1047349
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Number of poles (total)3
Number of protected poles3
Rated voltage400V
Rated current10A
Rated insulation voltage Ui440V
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Release characteristicZ
Power loss9.8W
Frequency50 - 60Hz
Flush-mounted installationNo
Current limiting class3
Concurrently switching neutral conductorNo
Over voltage category3
Pollution degree2
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings3
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Explosion-proofNo
