Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Frequency50 - 60Hz
Explosion-proofNo
Over voltage category3
Built-in depth70.5mm
Pollution degree2
Release characteristicC
Current limiting class3
Width in number of modular spacings2
Power loss2.3W
Rated current6A
Rated voltage250V
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 75°C
Flush-mounted installationNo
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

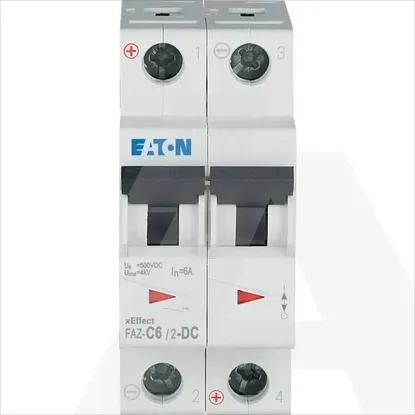

FAZ-C6/2-DC
