Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Rated current10A
Rated voltage250V
Built-in depth70.5mm
Release characteristicC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Current limiting class3
Explosion-proofNo
Power loss3.5W
Pollution degree2
Width in number of modular spacings2
Over voltage category3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section multi-wired1 - 25mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

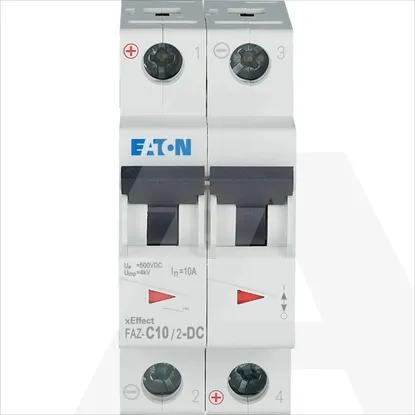

FAZ-C10/2-DC
