Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage250V
Voltage typeDC
Explosion-proofNo
Over voltage category3
Frequency50 - 60Hz
Rated current13A
Pollution degree2
Rated insulation voltage Ui440V
Current limiting class3
Width in number of modular spacings2
Release characteristicC
Power loss4.6W
Degree of protection (IP)IP20
Built-in depth70.5mm
Number of protected poles2
Number of poles (total)2
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

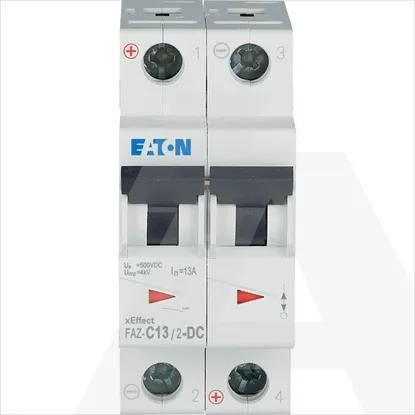

FAZ-C13/2-DC
