Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current16A
Built-in depth70.5mm
Voltage typeDC
Degree of protection (IP)IP20
Pollution degree2
Connectable conductor cross section multi-wired1 - 25mm²
Over voltage category3
Release characteristicC
Number of protected poles2
Current limiting class3
Ambient temperature during operating-25 - 75°C
Additional equipment possibleYes
Frequency50 - 60Hz
Number of poles (total)2
Connectable conductor cross section solid-core1 - 25mm²
Rated voltage250V
Power loss4.2W
Explosion-proofNo
Width in number of modular spacings2
Rated insulation voltage Ui440V
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

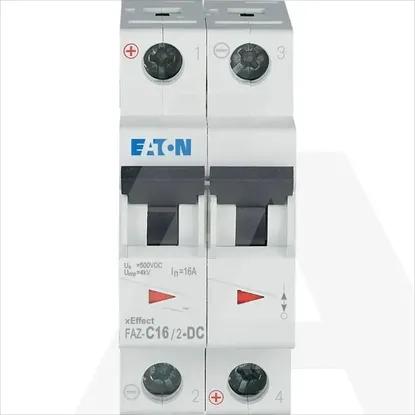

FAZ-C16/2-DC
