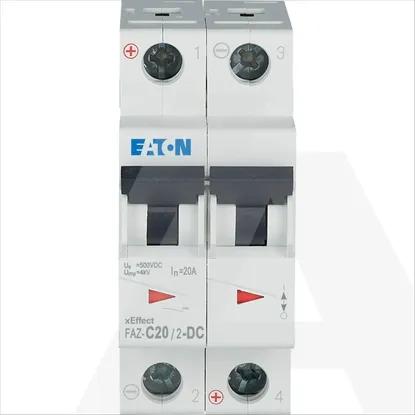

FAZ-C20/2-DC
Code: 1047474
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicC
Number of protected poles2
Built-in depth70.5mm
Rated current20A
Number of poles (total)2
Rated voltage250V
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Voltage typeDC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Power loss5.8W
Frequency50 - 60Hz
Current limiting class3
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Over voltage category3
Pollution degree2
Width in number of modular spacings2
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Explosion-proofNo
Degree of protection (IP)IP20
Additional equipment possibleYes
