Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated insulation voltage Ui440V
Rated current32A
Built-in depth70.5mm
Voltage typeDC
Release characteristicC
Frequency50 - 60Hz
Current limiting class3
Rated voltage250V
Degree of protection (IP)IP20
Width in number of modular spacings2
Explosion-proofNo
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of protected poles2
Flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Over voltage category3
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Concurrently switching neutral conductorNo
Power loss6.8W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Pollution degree2
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

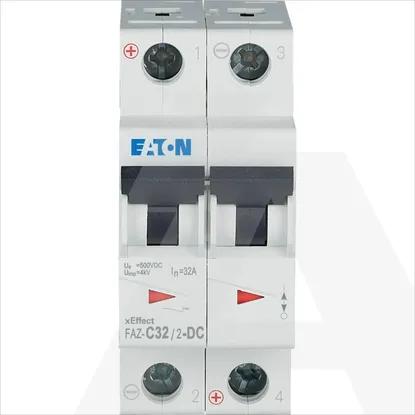

FAZ-C32/2-DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated insulation voltage Ui
440V
Rated current
32A
Built-in depth
70.5mm
Voltage type
DC
Release characteristic
C
Frequency
50 .. 60Hz
Current limiting class
3
Rated voltage
250V
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Explosion-proof
Ambient temperature during operating
-25 .. 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Number of protected poles
2
Flush-mounted installation
Additional equipment possible
Connectable conductor cross section multi-wired
1 .. 25mm²
Connectable conductor cross section solid-core
1 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0kA
Over voltage category
3
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
2
Concurrently switching neutral conductor
Power loss
6.8W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Pollution degree
2
