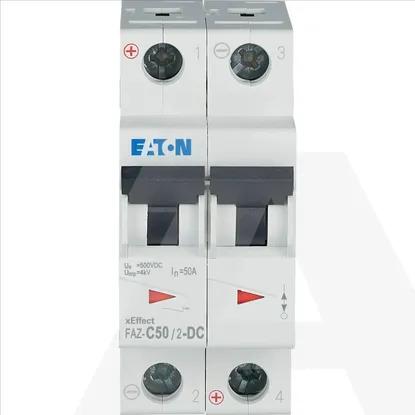

FAZ-C50/2-DC
Code: 1047478
ManufacturerEaton
Catalog number279145
TypeFAZ-C50/2-DC
CategoryMiniature circuit breaker (MCB)
EAN code4015082791452
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage250V
Built-in depth70.5mm
Voltage typeDC
Frequency50 - 60Hz
Explosion-proofNo
Connectable conductor cross section solid-core1 - 25mm²
Width in number of modular spacings2
Over voltage category3
Pollution degree2
Number of protected poles2
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Current limiting class3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated current50A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
FAZ-C50/2-DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated voltage
250V
Built-in depth
70.5mm
Voltage type
DC
Frequency
50 .. 60Hz
Explosion-proof
Connectable conductor cross section solid-core
1 .. 25mm²
Width in number of modular spacings
2
Over voltage category
3
Pollution degree
2
Number of protected poles
2
Rated insulation voltage Ui
440V
Concurrently switching neutral conductor
Current limiting class
3
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0kA
Additional equipment possible
Flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
-25 .. 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated current
50A
Release characteristic
C
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0kA
