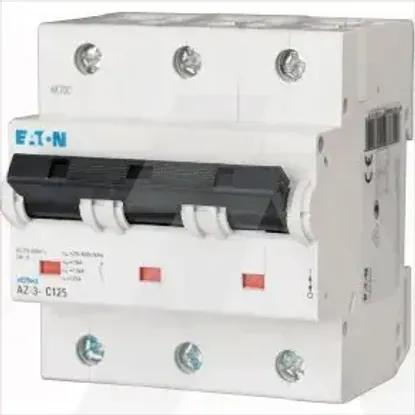

AZ-3-C125
Code: 1047612
ManufacturerEaton
Catalog number211811
TypeAZ-3-C125
CategoryMiniature circuit breaker (MCB)
EAN code4015082118112
Details
- •Circuit breaker AZ, char C, 3-pole, In=125A,
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Built-in depth75mm
Voltage typeAC
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree2
Current limiting class3
Over voltage category3
Concurrently switching neutral conductorNo
Width in number of modular spacings4.5
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section solid-core2.5 - 50mm²
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired2.5 - 50mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current125A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
