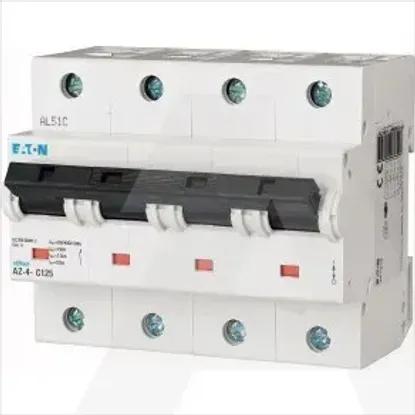

AZ-4-C125
Code: 1047613
ManufacturerEaton
Catalog number211812
TypeAZ-4-C125
CategoryMiniature circuit breaker (MCB)
EAN code4015082118129
Details
- •Circuit breaker AZ, char C, 4-pole, In=125A,
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Over voltage category3
Rated voltage400V
Current limiting class3
Voltage typeAC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Built-in depth75mm
Number of protected poles4
Explosion-proofNo
Connectable conductor cross section solid-core2.5 - 50mm²
Connectable conductor cross section multi-wired2.5 - 50mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Pollution degree2
Ambient temperature during operating-25 - 55°C
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Width in number of modular spacings6
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated current125A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
