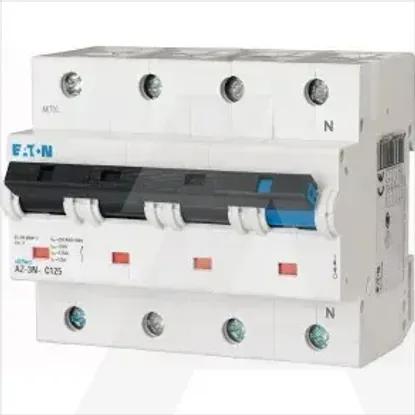

AZ-3N-C125
Code: 1047614
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicC
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of protected poles3
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Pollution degree2
Frequency50 - 60Hz
Built-in depth75mm
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Rated current125A
Degree of protection (IP)IP20
Flush-mounted installationNo
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Current limiting class3
Explosion-proofNo
Number of poles (total)4
Connectable conductor cross section multi-wired2.5 - 50mm²
Connectable conductor cross section solid-core2.5 - 50mm²
Width in number of modular spacings6
Ambient temperature during operating-25 - 55°C
Rated voltage400V
