Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Number of normally open contacts as main contact4
Height58mm
Modular versionNo
Depth52mm
Rated operation power at AC-3, 400 V4kW
Rated operation current Ie at AC-3, 400 V9A
Number of auxiliary contacts as normally closed contact0
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-1, 400 V22A
Rated control supply voltage Us at DC0 - 0V
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ24 - 24V
Operating voltage at AC 50 Hz24 - 690V
Rated control supply voltage Us at AC 50HZ24 - 24V
Rated operation current Ie at AC-4, 400 V6.6A
Rated operation power NEMA3.7kW
Rated operation power at AC-4, 400 V3kW
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingAC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

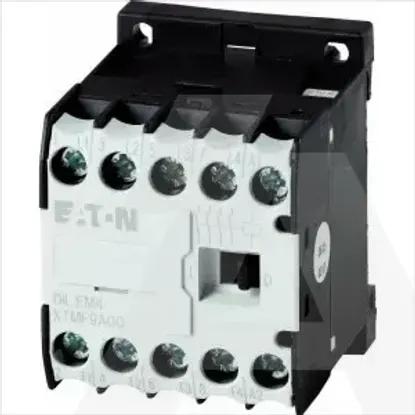

DILEM4(24V50/60HZ)
