Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth52mm
Width45mm
Height58mm
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V3kW
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-4, 400 V5A
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-4, 400 V2.2kW
Modular versionNo
Rated operation current Ie at AC-3, 400 V6.6A
Number of normally closed contacts as main contact0
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA2.2kW
Voltage type for actuatingAC
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC0 - 0V
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at AC 50HZ240 - 240V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

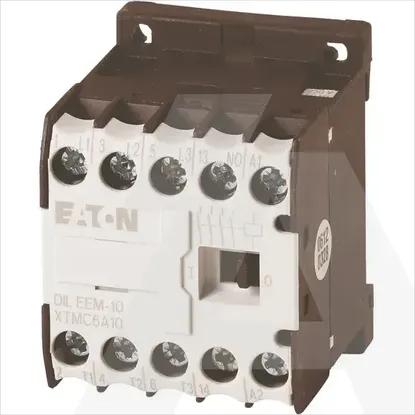

DILEEM-10(240V50HZ)
