Details
- •Low-voltage industrial components

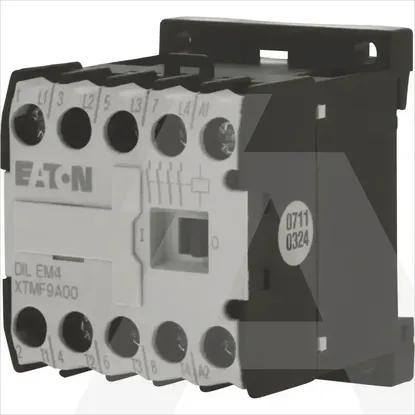

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Width45mm
Height58mm
Depth52mm
Rated control supply voltage Us at AC 50HZ400 - 400V
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
Operating voltage at AC 50 Hz24 - 690V
Rated operation power at AC-4, 400 V3kW
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-4, 400 V6.6A
Rated control supply voltage Us at AC 60HZ440 - 440V
Rated operation current Ie at AC-1, 400 V22A
Voltage type for actuatingAC
Rated operation current Ie at AC-3, 400 V9A
Rated operation power at AC-3, 400 V4kW
Number of normally closed contacts as main contact0
Rated control supply voltage Us at DC0 - 0V
Operating voltage at AC 60 Hz24 - 690V
Rated operation power NEMA3.7kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILEM4(400V50HZ,440V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Modular version
Width
45mm
Height
58mm
Depth
52mm
Rated control supply voltage Us at AC 50HZ
400 .. 400V
Number of normally open contacts as main contact
4
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
0
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power at AC-4, 400 V
3kW
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-4, 400 V
6.6A
Rated control supply voltage Us at AC 60HZ
440 .. 440V
Rated operation current Ie at AC-1, 400 V
22A
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
9A
Rated operation power at AC-3, 400 V
4kW
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at DC
0 .. 0V
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power NEMA
3.7kW
