Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at DC24 - 24V
Number of normally closed contacts as main contact0
Modular versionNo
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-3, 400 V7A
Rated operation power at AC-3, 400 V3kW
Rated operation current Ie at AC-1, 400 V22A
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation current Ie at AC-4, 400 V5A
Rated operation power at AC-4, 400 V2.2kW
Rated operation power NEMA2.2kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

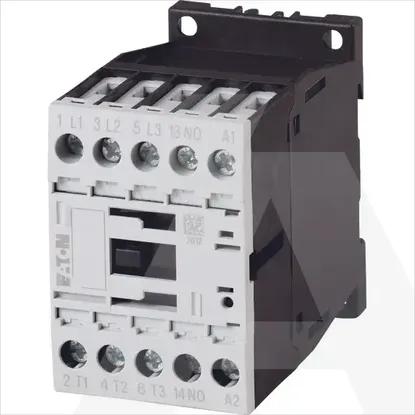

DILM7-10-SOND516(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at DC
24 .. 24V
Number of normally closed contacts as main contact
0
Modular version
Number of normally open contacts as main contact
3
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-3, 400 V
7A
Rated operation power at AC-3, 400 V
3kW
Rated operation current Ie at AC-1, 400 V
22A
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Voltage type for actuating
DC
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated operation current Ie at AC-4, 400 V
5A
Rated operation power at AC-4, 400 V
2.2kW
Rated operation power NEMA
2.2kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
