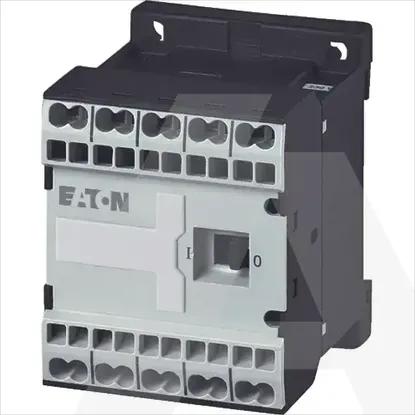

Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height58mm
Width45mm
Rated operation current Ie at AC-1, 400 V22A
Depth54mm
Modular versionNo
Rated operation current Ie at AC-3, 400 V6.6A
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of auxiliary contacts as normally closed contact0
Number of normally closed contacts as main contact0
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of normally open contacts as main contact3
Type of electrical connection of main circuitSpring clamp connection
Rated operation power at AC-4, 400 V2.2kW
Rated operation power NEMA2.2kW
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Rated control supply voltage Us at DC24 - 24V
Voltage type for actuatingDC
Rated operation current Ie at AC-4, 400 V5A
Rated operation power at AC-3, 400 V3kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILEEM-10-G-C(24VDC)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
58mm
Width
45mm
Rated operation current Ie at AC-1, 400 V
22A
Depth
54mm
Modular version
Rated operation current Ie at AC-3, 400 V
6.6A
Number of auxiliary contacts as normally open contact
1
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of normally open contacts as main contact
3
Type of electrical connection of main circuit
Spring clamp connection
Rated operation power at AC-4, 400 V
2.2kW
Rated operation power NEMA
2.2kW
Operating voltage at AC 50 Hz
24 .. 690V
Operating voltage at AC 60 Hz
24 .. 690V
Rated control supply voltage Us at DC
24 .. 24V
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
5A
Rated operation power at AC-3, 400 V
3kW
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
