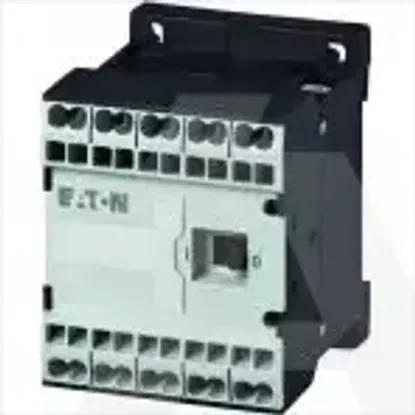

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height58mm
Width45mm
Rated control supply voltage Us at DC24 - 24V
Modular versionNo
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V6.6A
Number of auxiliary contacts as normally closed contact1
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation power at AC-3, 400 V3kW
Rated operation current Ie at AC-1, 400 V22A
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitSpring clamp connection
Depth54mm
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of auxiliary contacts as normally open contact0
Operating voltage at AC 60 Hz24 - 690V
Rated operation power NEMA2.2kW
Rated operation power at AC-4, 400 V2.2kW
Voltage type for actuatingDC
Rated operation current Ie at AC-4, 400 V5A
