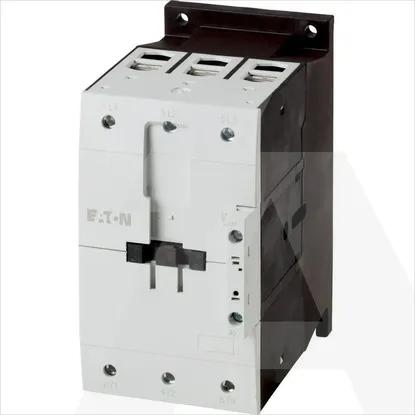

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Modular versionNo
Depth160mm
Width90mm
Height170mm
Rated operation power at AC-3, 400 V55kW
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Operating voltage at AC 60 Hz230 - 690V
Rated control supply voltage Us at AC 60HZ190 - 240V
Rated operation current Ie at AC-1, 400 V160A
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 50HZ190 - 240V
Rated operation current Ie at AC-3, 400 V115A
Rated operation current Ie at AC-4, 400 V55A
Operating voltage at AC 50 Hz230 - 690V
Rated operation power NEMA74kW
Voltage type for actuatingAC
Rated operation power at AC-4, 400 V28kW
Rated control supply voltage Us at DC0 - 0V
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM115(RAC240)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsRecommended productsFrom same serie
Technical specifications
Number of normally open contacts as main contact
3
Modular version
Depth
160mm
Width
90mm
Height
170mm
Rated operation power at AC-3, 400 V
55kW
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Operating voltage at AC 60 Hz
230 .. 690V
Rated control supply voltage Us at AC 60HZ
190 .. 240V
Rated operation current Ie at AC-1, 400 V
160A
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
190 .. 240V
Rated operation current Ie at AC-3, 400 V
115A
Rated operation current Ie at AC-4, 400 V
55A
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation power NEMA
74kW
Voltage type for actuating
AC
Rated operation power at AC-4, 400 V
28kW
Rated control supply voltage Us at DC
0 .. 0V
