Details
- •Low-voltage industrial components

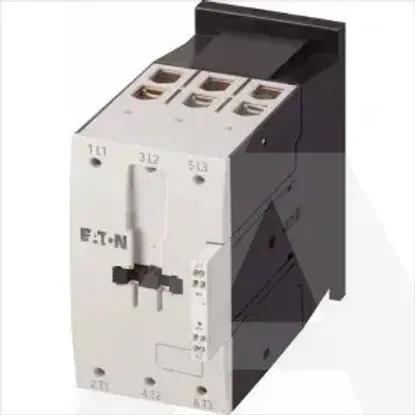

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width90mm
Height170mm
Number of normally open contacts as main contact3
Depth160mm
Rated operation power at AC-3, 400 V37kW
Modular versionNo
Rated control supply voltage Us at DC24 - 27V
Rated operation power at AC-4, 400 V20kW
Rated operation power NEMA44.7kW
Rated control supply voltage Us at AC 60HZ0 - 0V
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V40A
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitSpring clamp connection
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-3, 400 V80A
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V110A
Operating voltage at AC 50 Hz230 - 690V
Voltage type for actuatingDC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILMC80(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
90mm
Height
170mm
Number of normally open contacts as main contact
3
Depth
160mm
Rated operation power at AC-3, 400 V
37kW
Modular version
Rated control supply voltage Us at DC
24 .. 27V
Rated operation power at AC-4, 400 V
20kW
Rated operation power NEMA
44.7kW
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Operating voltage at AC 60 Hz
230 .. 690V
Rated operation current Ie at AC-4, 400 V
40A
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Spring clamp connection
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V
80A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
110A
Operating voltage at AC 50 Hz
230 .. 690V
Voltage type for actuating
DC
