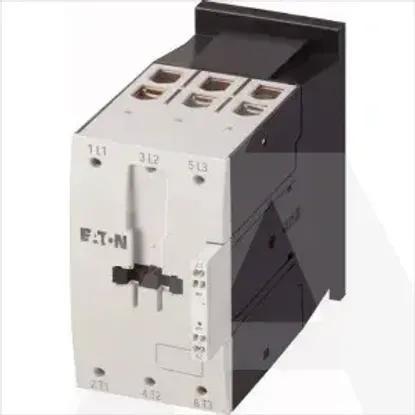

DILMC150(RDC24)

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Type of electrical connection of main circuit

Screw connection

Rated control supply voltage Us at DC

24 - 27V

Rated operation power at AC-3, 400 V

75kW

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at AC 50HZ

0 - 0V

Voltage type for actuating

DC

Rated operation current Ie at AC-3, 400 V

150A

Modular version

No

Number of normally closed contacts as main contact

0

Rated operation current Ie at AC-1, 400 V

190A

Number of normally open contacts as main contact

3

Rated operation power at AC-4, 400 V

33kW

Rated operation current Ie at AC-4, 400 V

65A

Rated operation power NEMA

93kW
