Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height68mm
Width45mm
Modular versionNo
Depth75mm
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Rated operation current Ie at AC-1, 400 V7A
Rated control supply voltage Us at DC24 - 24V
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of normally closed contacts as main contact0
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation power at AC-4, 400 V3kW
Rated operation current Ie at AC-4, 400 V7A
Rated operation power NEMA3kW
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V3kW
Number of auxiliary contacts as normally open contact1
Rated operation current Ie at AC-3, 400 V7A
Number of auxiliary contacts as normally closed contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

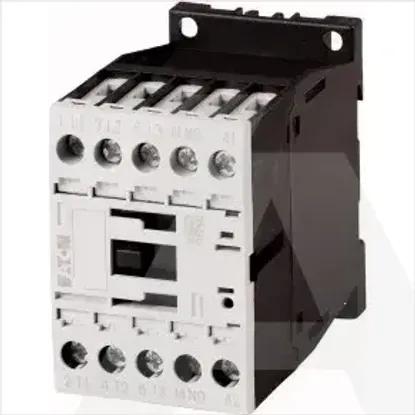

DILM7-10(24VDC)
