Details
- •Low-voltage industrial components

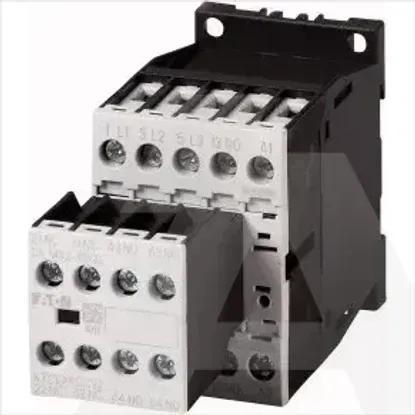

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact3
Rated operation current Ie at AC-3, 400 V7A
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-1, 400 V22A
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation current Ie at AC-4, 400 V5A
Rated operation power NEMA2.2kW
Voltage type for actuatingAC
Rated control supply voltage Us at AC 50HZ24 - 24V
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-4, 400 V2.2kW
Rated operation power at AC-3, 400 V3kW
Modular versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM7-32(24V50HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
3
Rated operation current Ie at AC-3, 400 V
7A
Rated control supply voltage Us at DC
0 .. 0V
Rated operation current Ie at AC-1, 400 V
22A
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
2
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation current Ie at AC-4, 400 V
5A
Rated operation power NEMA
2.2kW
Voltage type for actuating
AC
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-4, 400 V
2.2kW
Rated operation power at AC-3, 400 V
3kW
Modular version
