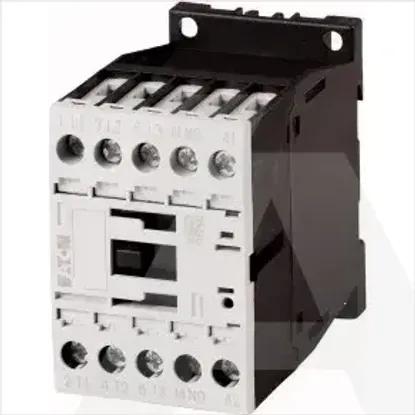

DILM9-10(24VDC)
Code: 1050610
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of normally open contacts as main contact3
Rated control supply voltage Us at DC24 - 24V
Number of normally closed contacts as main contact0
Voltage type for actuatingDC
Operating voltage at AC 60 Hz24 - 690V
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-4, 400 V2.5kW
Rated operation power at AC-3, 400 V4kW
Rated operation current Ie at AC-1, 400 V22A
Number of auxiliary contacts as normally closed contact0
Rated operation power NEMA3.7kW
Rated operation current Ie at AC-3, 400 V9A
Type of electrical connection of main circuitScrew connection
Modular versionNo
Operating voltage at AC 50 Hz24 - 690V
Width45mm
Rated operation current Ie at AC-4, 400 V6A
Depth75mm
Height68mm
