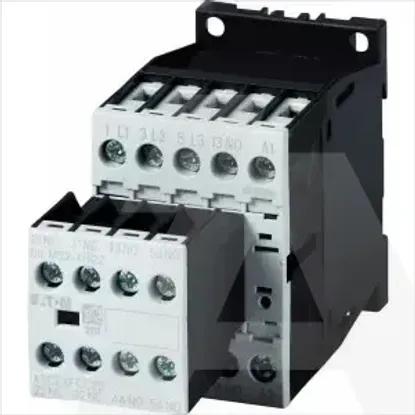

DILM9-32(24VDC)
Code: 1050715
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V4kW
Rated operation current Ie at AC-1, 400 V22A
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated operation power at AC-4, 400 V2.5kW
Width45mm
Rated operation power NEMA3.7kW
Depth117mm
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-3, 400 V9A
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V6A
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact3
Rated control supply voltage Us at DC24 - 24V
Height68mm
Operating voltage at AC 60 Hz24 - 690V
Number of auxiliary contacts as normally closed contact2
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Modular versionNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM9-32(24VDC)
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation power at AC-3, 400 V
4kW
Rated operation current Ie at AC-1, 400 V
22A
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated operation power at AC-4, 400 V
2.5kW
Width
45mm
Rated operation power NEMA
3.7kW
Depth
117mm
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-3, 400 V
9A
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-4, 400 V
6A
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
3
Rated control supply voltage Us at DC
24 .. 24V
Height
68mm
Operating voltage at AC 60 Hz
24 .. 690V
Number of auxiliary contacts as normally closed contact
2
Voltage type for actuating
DC
Number of normally closed contacts as main contact
0
Modular version
