Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height85mm
Rated operation current Ie at AC-3, 400 V18A
Rated operation current Ie at AC-1, 400 V40A
Number of auxiliary contacts as normally closed contact0
Modular versionNo
Rated control supply voltage Us at AC 50HZ42 - 42V
Depth97mm
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact1
Width45mm
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ48 - 48V
Rated control supply voltage Us at DC0 - 0V
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V4.5kW
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V10A
Rated operation power NEMA7.4kW
Voltage type for actuatingAC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

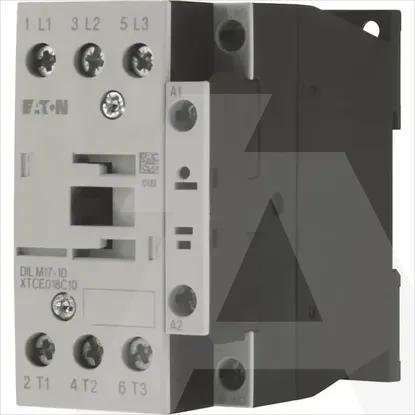

DILM17-10(42V50HZ,48V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
85mm
Rated operation current Ie at AC-3, 400 V
18A
Rated operation current Ie at AC-1, 400 V
40A
Number of auxiliary contacts as normally closed contact
0
Modular version
Rated control supply voltage Us at AC 50HZ
42 .. 42V
Depth
97mm
Rated operation power at AC-3, 400 V
7.5kW
Number of auxiliary contacts as normally open contact
1
Width
45mm
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 60HZ
48 .. 48V
Rated control supply voltage Us at DC
0 .. 0V
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power at AC-4, 400 V
4.5kW
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-4, 400 V
10A
Rated operation power NEMA
7.4kW
Voltage type for actuating
AC
