Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V11kW
Height85mm
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at DC0 - 0V
Depth97mm
Operating voltage at AC 50 Hz24 - 690V
Width45mm
Rated operation current Ie at AC-3, 400 V25A
Type of electrical connection of main circuitScrew connection
Modular versionNo
Rated control supply voltage Us at AC 50HZ48 - 48V
Operating voltage at AC 60 Hz24 - 690V
Voltage type for actuatingAC
Number of auxiliary contacts as normally open contact1
Rated operation current Ie at AC-4, 400 V13A
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation current Ie at AC-1, 400 V45A
Rated operation power at AC-4, 400 V6kW
Rated operation power NEMA11kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

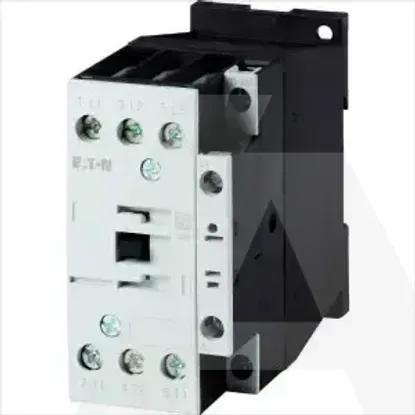

DILM25-10(48V50HZ)
