Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as normally open contact1
Height85mm
Modular versionNo
Width45mm
Depth97mm
Rated operation current Ie at AC-3, 400 V25A
Number of auxiliary contacts as normally closed contact0
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 60HZ48 - 48V
Operating voltage at AC 60 Hz24 - 690V
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 50HZ42 - 42V
Rated operation current Ie at AC-1, 400 V45A
Rated operation current Ie at AC-4, 400 V13A
Voltage type for actuatingAC
Operating voltage at AC 50 Hz24 - 690V
Rated operation power NEMA11kW
Rated operation power at AC-4, 400 V6kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

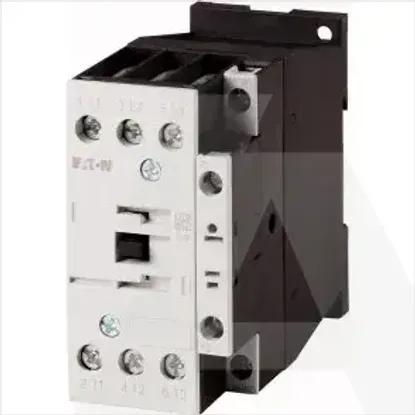

DILM25-10(42V50HZ,48V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation power at AC-3, 400 V
11kW
Number of auxiliary contacts as normally open contact
1
Height
85mm
Modular version
Width
45mm
Depth
97mm
Rated operation current Ie at AC-3, 400 V
25A
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Rated control supply voltage Us at DC
0 .. 0V
Rated control supply voltage Us at AC 60HZ
48 .. 48V
Operating voltage at AC 60 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
42 .. 42V
Rated operation current Ie at AC-1, 400 V
45A
Rated operation current Ie at AC-4, 400 V
13A
Voltage type for actuating
AC
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power NEMA
11kW
Rated operation power at AC-4, 400 V
6kW
Related products
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
