Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Height85mm
Modular versionNo
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-3, 400 V25A
Rated control supply voltage Us at DC0 - 0V
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V45A
Rated control supply voltage Us at AC 50HZ415 - 415V
Rated control supply voltage Us at AC 60HZ480 - 480V
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact1
Depth97mm
Operating voltage at AC 50 Hz24 - 690V
Rated operation power at AC-3, 400 V11kW
Voltage type for actuatingAC
Operating voltage at AC 60 Hz24 - 690V
Rated operation power NEMA11kW
Rated operation power at AC-4, 400 V6kW
Rated operation current Ie at AC-4, 400 V13A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

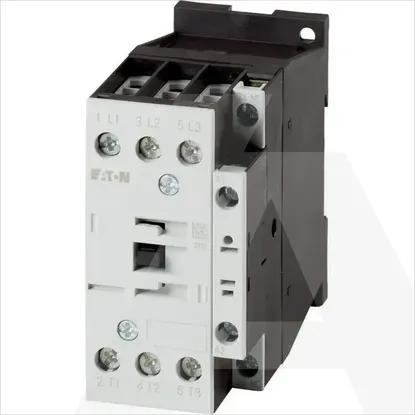

DILM25-01(415V50HZ,480V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Width
45mm
Height
85mm
Modular version
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V
25A
Rated control supply voltage Us at DC
0 .. 0V
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-1, 400 V
45A
Rated control supply voltage Us at AC 50HZ
415 .. 415V
Rated control supply voltage Us at AC 60HZ
480 .. 480V
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Depth
97mm
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation power at AC-3, 400 V
11kW
Voltage type for actuating
AC
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power NEMA
11kW
Rated operation power at AC-4, 400 V
6kW
Rated operation current Ie at AC-4, 400 V
13A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
