Details
- •Low-voltage industrial components

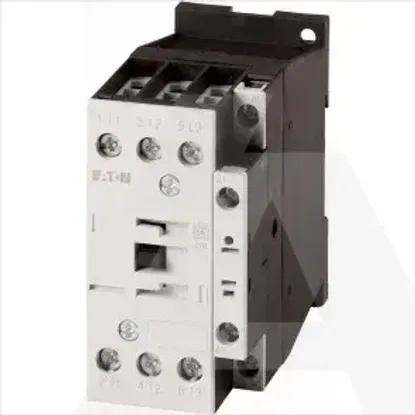

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-1, 400 V45A
Depth97mm
Width45mm
Number of normally open contacts as main contact3
Rated operation current Ie at AC-3, 400 V25A
Height85mm
Modular versionNo
Number of auxiliary contacts as normally closed contact1
Operating voltage at AC 50 Hz24 - 690V
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at DC0 - 0V
Number of normally closed contacts as main contact0
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ230 - 230V
Rated operation power at AC-3, 400 V11kW
Rated operation power NEMA11kW
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V6kW
Rated operation current Ie at AC-4, 400 V13A
Voltage type for actuatingAC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM25-01(230V50/60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation current Ie at AC-1, 400 V
45A
Depth
97mm
Width
45mm
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-3, 400 V
25A
Height
85mm
Modular version
Number of auxiliary contacts as normally closed contact
1
Operating voltage at AC 50 Hz
24 .. 690V
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at DC
0 .. 0V
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Rated operation power at AC-3, 400 V
11kW
Rated operation power NEMA
11kW
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power at AC-4, 400 V
6kW
Rated operation current Ie at AC-4, 400 V
13A
Voltage type for actuating
AC
