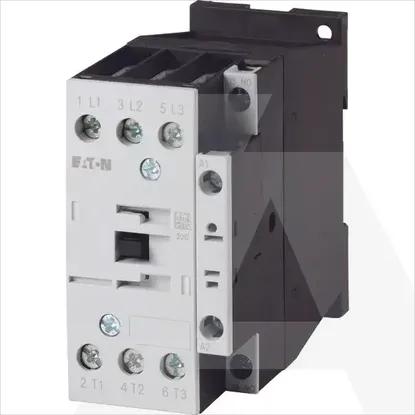

DILM32-10(24V50/60HZ)
Code: 1051151
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ24 - 24V
Rated control supply voltage Us at AC 50HZ24 - 24V
Type of electrical connection of main circuitScrew connection
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V45A
Rated operation power NEMA14.9kW
Rated operation power at AC-3, 400 V15kW
Rated operation current Ie at AC-3, 400 V32A
Modular versionNo
Height85mm
Operating voltage at AC 50 Hz24 - 690V
Number of auxiliary contacts as normally closed contact0
Depth97mm
Rated operation current Ie at AC-4, 400 V15A
Width45mm
Rated control supply voltage Us at DC0 - 0V
Rated operation power at AC-4, 400 V7kW
Operating voltage at AC 60 Hz24 - 690V
Number of auxiliary contacts as normally open contact1
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM32-10(24V50/60HZ)
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Voltage type for actuating
AC
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
45A
Rated operation power NEMA
14.9kW
Rated operation power at AC-3, 400 V
15kW
Rated operation current Ie at AC-3, 400 V
32A
Modular version
Height
85mm
Operating voltage at AC 50 Hz
24 .. 690V
Number of auxiliary contacts as normally closed contact
0
Depth
97mm
Rated operation current Ie at AC-4, 400 V
15A
Width
45mm
Rated control supply voltage Us at DC
0 .. 0V
Rated operation power at AC-4, 400 V
7kW
Operating voltage at AC 60 Hz
24 .. 690V
Number of auxiliary contacts as normally open contact
1
