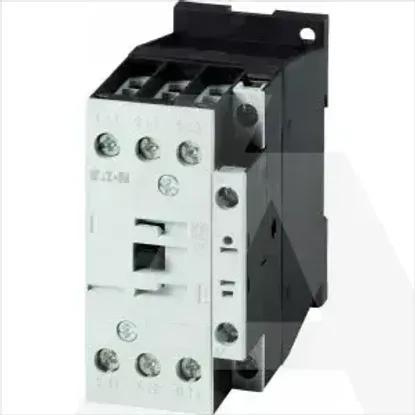

DILM32-01(RDC24)
Code: 1051192
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Voltage type for actuatingDC
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC24 - 27V
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V45A
Operating voltage at AC 60 Hz24 - 690V
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz24 - 690V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V15kW
Rated operation current Ie at AC-3, 400 V32A
Width45mm
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-4, 400 V7kW
Modular versionNo
Height85mm
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation power NEMA14.9kW
Rated operation current Ie at AC-4, 400 V15A
Depth97mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM32-01(RDC24)
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Voltage type for actuating
DC
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
24 .. 27V
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
45A
Operating voltage at AC 60 Hz
24 .. 690V
Number of normally open contacts as main contact
3
Operating voltage at AC 50 Hz
24 .. 690V
Number of auxiliary contacts as normally open contact
0
Rated operation power at AC-3, 400 V
15kW
Rated operation current Ie at AC-3, 400 V
32A
Width
45mm
Number of auxiliary contacts as normally closed contact
1
Rated operation power at AC-4, 400 V
7kW
Modular version
Height
85mm
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation power NEMA
14.9kW
Rated operation current Ie at AC-4, 400 V
15A
Depth
97mm
