Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width55mm
Height115mm
Depth132.1mm
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
Operating voltage at AC 60 Hz230 - 690V
Modular versionNo
Operating voltage at AC 50 Hz230 - 690V
Voltage type for actuatingAC
Rated operation power at AC-3, 400 V30kW
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V65A
Rated operation current Ie at AC-1, 400 V65A
Rated control supply voltage Us at AC 50HZ110 - 110V
Rated control supply voltage Us at AC 60HZ120 - 120V
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-4, 400 V65A
Rated operation power at AC-4, 400 V30kW
Rated operation power NEMA30kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

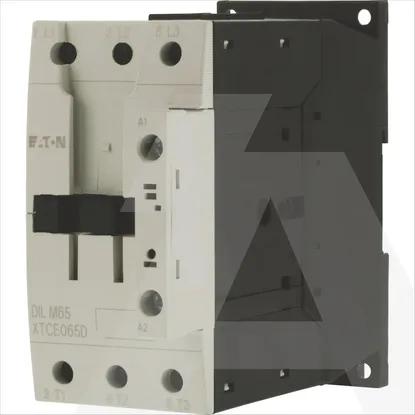

DILM65(110V50HZ,120V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
55mm
Height
115mm
Depth
132.1mm
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
0
Operating voltage at AC 60 Hz
230 .. 690V
Modular version
Operating voltage at AC 50 Hz
230 .. 690V
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
30kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-3, 400 V
65A
Rated operation current Ie at AC-1, 400 V
65A
Rated control supply voltage Us at AC 50HZ
110 .. 110V
Rated control supply voltage Us at AC 60HZ
120 .. 120V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation current Ie at AC-4, 400 V
65A
Rated operation power at AC-4, 400 V
30kW
Rated operation power NEMA
30kW
