Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Height189mm
Depth208mm
Rated operation power at AC-3, 400 V132kW
Width140mm
Rated operation current Ie at AC-4, 400 V200A
Rated operation power NEMA149kW
Rated operation current Ie at AC-1, 400 V429A
Rated operation current Ie at AC-3, 400 V250A
Rated control supply voltage Us at DC110 - 250V
Rated control supply voltage Us at AC 50HZ110 - 250V
Voltage type for actuatingAC/DC
Operating voltage at AC 50 Hz110 - 250V
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at AC 60HZ110 - 250V
Type of electrical connection of main circuitRail connection
Operating voltage at AC 60 Hz110 - 250V
Rated operation power at AC-4, 400 V110kW
Number of auxiliary contacts as normally closed contact2
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

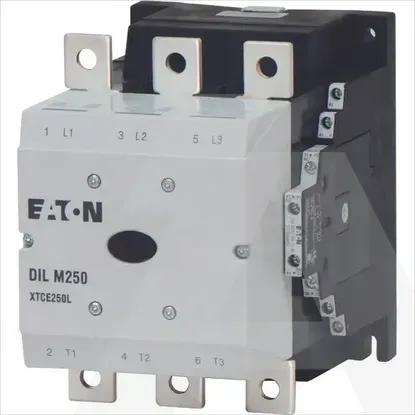

DILM250/22(RA250)
