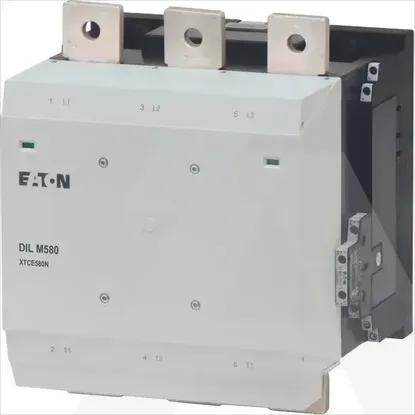

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Width250mm
Depth232mm
Rated operation current Ie at AC-1, 400 V980A
Modular versionNo
Rated operation power at AC-3, 400 V315kW
Rated operation current Ie at AC-3, 400 V580A
Number of auxiliary contacts as normally open contact2
Operating voltage at AC 50 Hz48 - 110V
Number of normally closed contacts as main contact0
Height296mm
Voltage type for actuatingAC/DC
Number of auxiliary contacts as normally closed contact2
Operating voltage at AC 60 Hz48 - 110V
Rated control supply voltage Us at AC 60HZ48 - 110V
Rated control supply voltage Us at AC 50HZ48 - 110V
Type of electrical connection of main circuitRail connection
Rated control supply voltage Us at DC48 - 110V
Rated operation power NEMA298kW
Rated operation power at AC-4, 400 V250kW
Rated operation current Ie at AC-4, 400 V456A
