Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth232mm
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Height296mm
Rated control supply voltage Us at AC 50HZ48 - 110V
Rated operation current Ie at AC-1, 400 V1041A
Number of normally closed contacts as main contact0
Rated operation power at AC-3, 400 V355kW
Number of auxiliary contacts as normally closed contact2
Modular versionNo
Width250mm
Rated operation current Ie at AC-3, 400 V650A
Rated control supply voltage Us at DC48 - 100V
Type of electrical connection of main circuitRail connection
Operating voltage at AC 50 Hz48 - 110V
Rated control supply voltage Us at AC 60HZ48 - 110V
Voltage type for actuatingAC/DC
Operating voltage at AC 60 Hz48 - 110V
Rated operation current Ie at AC-4, 400 V512A
Rated operation power NEMA373kW
Rated operation power at AC-4, 400 V280kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

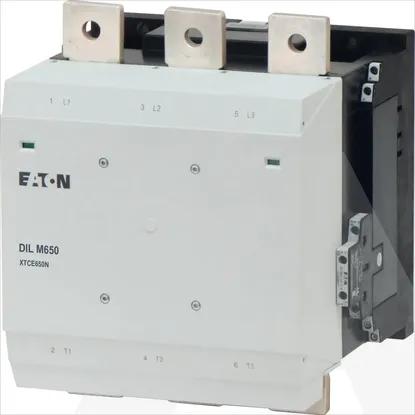

DILM650/22(RA110)
