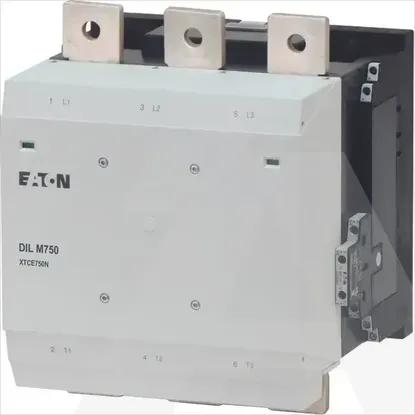

DILM750/22(RAC500)
Code: 1060577
ManufacturerEaton
Catalog number208223
TypeDILM750/22(RAC500)
CategoryPower contactor, AC switching
EAN code4015082082239
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width250mm
Number of normally closed contacts as main contact0
Depth232mm
Modular versionNo
Height296mm
Voltage type for actuatingAC/DC
Operating voltage at AC 50 Hz250 - 500V
Rated operation current Ie at AC-1, 400 V1102A
Rated control supply voltage Us at AC 60HZ480 - 500V
Operating voltage at AC 60 Hz250 - 500V
Number of normally open contacts as main contact3
Type of electrical connection of main circuitRail connection
Rated control supply voltage Us at DC250 - 700V
Rated operation power at AC-4, 400 V315kW
Rated operation power NEMA447kW
Rated operation current Ie at AC-4, 400 V576A
Rated operation power at AC-3, 400 V400kW
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V750A
Rated control supply voltage Us at AC 50HZ480 - 500V
