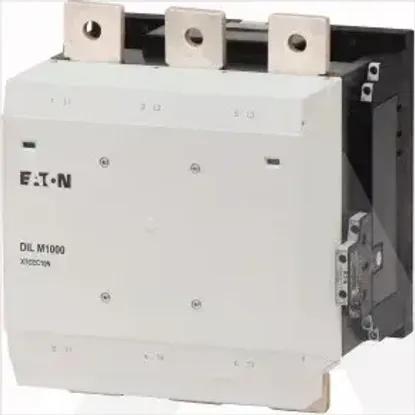

DILM1000/22(RA250)
Code: 1060678
Details
- •Low-voltage control systems
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-1, 400 V1225A
Rated control supply voltage Us at AC 50HZ110 - 250V
Number of normally closed contacts as main contact0
Voltage type for actuatingAC/DC
Rated control supply voltage Us at AC 60HZ110 - 250V
Number of auxiliary contacts as normally closed contact2
Rated operation current Ie at AC-3, 400 V1000A
Number of auxiliary contacts as normally open contact2
Rated operation current Ie at AC-4, 400 V800A
Operating voltage at AC 50 Hz110 - 250V
Number of normally open contacts as main contact3
Operating voltage at AC 60 Hz110 - 250V
Rated control supply voltage Us at DC110 - 250V
Type of electrical connection of main circuitRail connection
Rated operation power at AC-4, 400 V450kW
Rated operation power at AC-3, 400 V560kW
Modular versionNo
Rated operation power NEMA596kW
Depth232mm
Height296mm
Width250mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM1000/22(RA250)
Details
- Low-voltage control systems
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation current Ie at AC-1, 400 V
1225A
Rated control supply voltage Us at AC 50HZ
110 .. 250V
Number of normally closed contacts as main contact
0
Voltage type for actuating
AC/DC
Rated control supply voltage Us at AC 60HZ
110 .. 250V
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie at AC-3, 400 V
1000A
Number of auxiliary contacts as normally open contact
2
Rated operation current Ie at AC-4, 400 V
800A
Operating voltage at AC 50 Hz
110 .. 250V
Number of normally open contacts as main contact
3
Operating voltage at AC 60 Hz
110 .. 250V
Rated control supply voltage Us at DC
110 .. 250V
Type of electrical connection of main circuit
Rail connection
Rated operation power at AC-4, 400 V
450kW
Rated operation power at AC-3, 400 V
560kW
Modular version
Rated operation power NEMA
596kW
Depth
232mm
Height
296mm
Width
250mm
