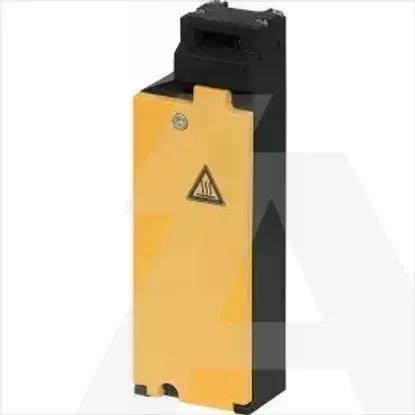

LS-S02-24DMT-ZBZ/X
Code: 1063313
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Height of sensor173mm
Width sensor60mm
Length of sensor39mm
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at DC-13, 125 V0.8A
Diameter sensor0mm
Rated operation current Ie at AC-15, 125 V6A
Switching functionSlow-action switch
Rated operation current Ie at DC-13, 24 V3A
Number of safety auxiliary contacts2
Rated operation current Ie at DC-13, 230 V0.3A
Rated operation current Ie at AC-15, 24 V6A
Forced openingYes
Switching function latchingNo
Number of contacts as normally closed contact2
Type of interfaceNone
Construction type housingCuboid
Output electronicNo
Number of contacts as normally open contact0
Coating housingOther
Material housingPlastic
Number of contacts as change-over contact0
Alignment of the control elementOther
Suitable for safety functionsYes
Type of interface for safety communicationNone
Explosion safety category for gasNone
Explosion safety category for dustNone
Type of electric connectionCable entry metrical
With status indicationNo
Ambient temperature during operating-25 - 70°C
Type of control elementNone
Degree of protection (IP)IP65
Degree of protection (NEMA)Other
