Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth70.5mm
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Ambient temperature during operating-25 - 75°C
Suitable for flush-mounted installationNo
Pollution degree2
Width in number of modular spacings3
Concurrently switching neutral conductorYes
Frequency50 - 60Hz
Additional equipment possibleYes
Rated insulation voltage Ui440V
Rated current2A
Over voltage category3
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

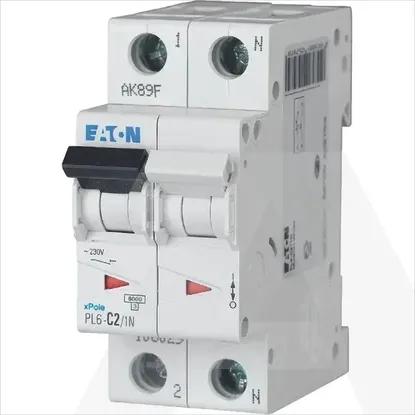

PL6-C2/1N
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated productsRecommended products
Technical specifications
Voltage type
AC
Built-in depth
70.5mm
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Connectable conductor cross section solid-core
1 .. 25mm²
Connectable conductor cross section multi-wired
1 .. 25mm²
Rated voltage
400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Number of protected poles
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
4kV
Release characteristic
C
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Ambient temperature during operating
-25 .. 75°C
Suitable for flush-mounted installation
Pollution degree
2
Width in number of modular spacings
3
Concurrently switching neutral conductor
Frequency
50 .. 60Hz
Additional equipment possible
Rated insulation voltage Ui
440V
Rated current
2A
Over voltage category
3
