Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage400V
Rated current4A
Rated insulation voltage Ui440V
Release characteristicC
Frequency50 - 60Hz
Built-in depth70.5mm
Voltage typeAC
Current limiting class3
Number of protected poles1
Degree of protection (IP)IP20
Pollution degree2
Over voltage category3
Width in number of modular spacings3
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Number of poles (total)2
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Connectable conductor cross section solid-core1 - 25mm²
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

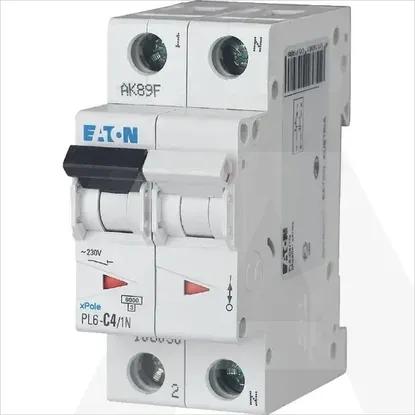

PL6-C4/1N
