Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Voltage typeAC
Release characteristicC
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Rated voltage400V
Rated current13A
Pollution degree2
Over voltage category3
Additional equipment possibleYes
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles1
Connectable conductor cross section multi-wired1 - 25mm²
Width in number of modular spacings3
Ambient temperature during operating-25 - 75°C
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

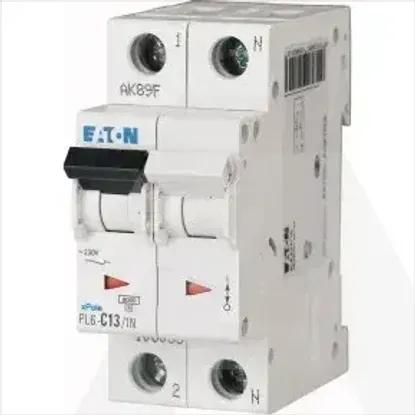

PL6-C13/1N
