Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Release characteristicD
Rated voltage400V
Frequency50 - 60Hz
Rated current20A
Built-in depth70.5mm
Pollution degree2
Number of protected poles3
Connectable conductor cross section multi-wired1 - 25mm²
Rated insulation voltage Ui440V
Current limiting class3
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings3
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Ambient temperature during operating-25 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Related products
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

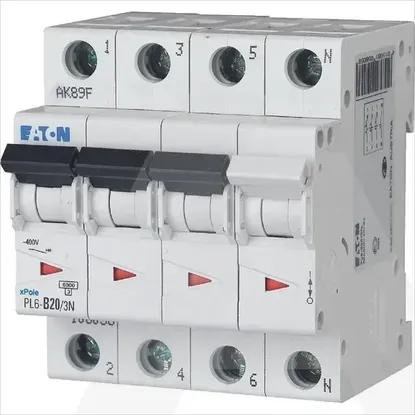

PL6-B20/3N
