Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-15, 230 V6A
Switching functionSlow-action switch
Type of electric connectionCable entry metrical
Explosion safety category for gasNone
Material housingPlastic
Suitable for safety functionsYes
Type of interface for safety communicationNone
Rated operation current Ie at DC-13, 230 V0.3A
Coating housingOther
Output electronicNo
Type of interfaceNone
Number of safety auxiliary contacts2
Explosion safety category for dustNone
With status indicationNo
Forced openingYes
Rated operation current Ie at DC-13, 24 V3A
Type of control elementNone
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at AC-15, 125 V6A
Construction type housingCuboid
Width sensor60mm
Rated operation current Ie at DC-13, 125 V0.8A
Degree of protection (IP)IP65
Height of sensor173mm
Diameter sensor0mm
Length of sensor39mm
Switching function latchingNo
Number of contacts as change-over contact0
Alignment of the control elementOther
Number of contacts as normally closed contact2
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact0
Degree of protection (NEMA)Other
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

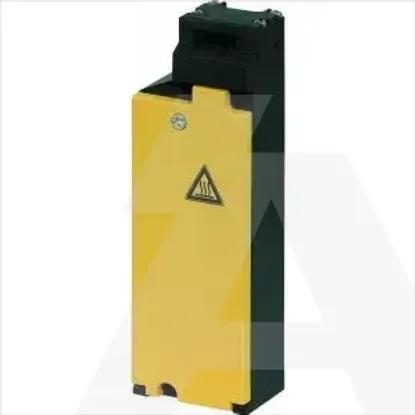

LS-S02-120AFT-ZBZ/X
