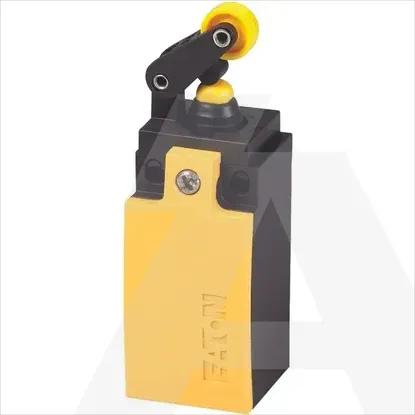

LS-S02/L
Code: 1063732
Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at DC-13, 24 V3A
Diameter sensor0mm
Width sensor31mm
Height of sensor61mm
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at AC-15, 125 V6A
Length of sensor33.5mm
Rated operation current Ie at DC-13, 230 V0.3A
Switching function latchingNo
Rated operation current Ie at DC-13, 125 V0.8A
Rated operation current Ie at AC-15, 230 V6A
Switching functionSlow-action switch
Output electronicNo
Forced openingYes
Number of safety auxiliary contacts2
Number of contacts as normally closed contact2
Number of contacts as change-over contact0
Type of interface for safety communicationNone
Material housingPlastic
Type of control elementRoller lever
Type of interfaceNone
Alignment of the control elementOther
Coating housingOther
Number of contacts as normally open contact0
Construction type housingCuboid
Suitable for safety functionsYes
Type of electric connectionCable entry metrical
Ambient temperature during operating-25 - 70°C
Explosion safety category for gasNone
Degree of protection (IP)IP66/IP67
Explosion safety category for dustNone
Degree of protection (NEMA)Other
With status indicationNo
