Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Switching functionSlow-action switch
Forced openingYes
Type of control elementRoller lever
Material housingPlastic
With status indicationNo
Number of safety auxiliary contacts1
Rated operation current Ie at AC-15, 125 V6A
Rated operation current Ie at AC-15, 230 V6A
Type of interface for safety communicationNone
Rated operation current Ie at DC-13, 230 V0.3A
Suitable for safety functionsYes
Type of electric connectionCable entry metrical
Coating housingOther
Explosion safety category for dustNone
Construction type housingCuboid
Output electronicNo
Type of interfaceNone
Explosion safety category for gasNone
Degree of protection (IP)IP66/IP67
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at DC-13, 125 V0.8A
Width sensor31mm
Rated operation current Ie at AC-15, 24 V6A
Diameter sensor0mm
Height of sensor61mm
Number of contacts as normally open contact1
Length of sensor33.5mm
Switching function latchingNo
Degree of protection (NEMA)Other
Ambient temperature during operating-25 - 70°C
Number of contacts as normally closed contact1
Alignment of the control elementOther
Number of contacts as change-over contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

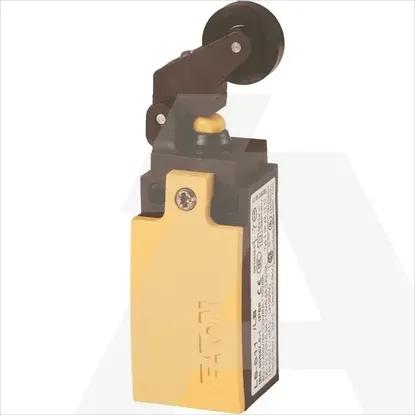

LS-S11/LB
