Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsYes
Switching functionSlow-action switch
Material housingPlastic
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at DC-13, 230 V0.3A
Coating housingOther
Type of electric connectionCable entry metrical
Type of interface for safety communicationNone
Degree of protection (IP)IP66/IP67
Construction type housingCuboid
Explosion safety category for gasNone
Number of safety auxiliary contacts1
Explosion safety category for dustNone
Type of control elementRoller lever
Width sensor31mm
Output electronicNo
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at AC-15, 125 V6A
Type of interfaceNone
Rated operation current Ie at AC-15, 24 V6A
With status indicationNo
Rated operation current Ie at DC-13, 125 V0.8A
Number of contacts as change-over contact0
Height of sensor61mm
Length of sensor33.5mm
Number of contacts as normally closed contact1
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Forced openingYes
Switching function latchingNo
Diameter sensor0mm
Degree of protection (NEMA)Other
Alignment of the control elementOther
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

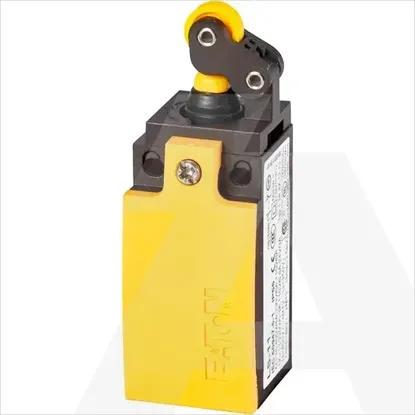

LS-S11/LS
