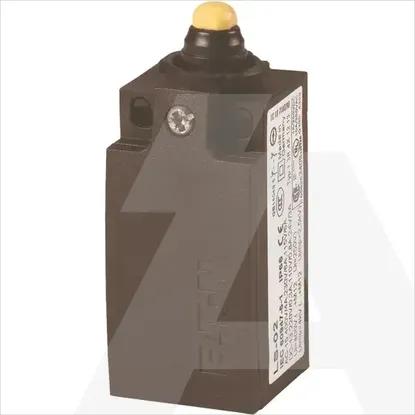

Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Switching functionSlow-action switch
Material housingPlastic
Rated operation current Ie at DC-13, 24 V3A
Type of interfaceNone
Type of control elementPlunger
Rated operation current Ie at AC-15, 125 V6A
Rated operation current Ie at DC-13, 125 V0.8A
Explosion safety category for gasNone
Explosion safety category for dustNone
Coating housingOther
Type of electric connectionCable entry metrical
Construction type housingCuboid
Type of interface for safety communicationNone
Degree of protection (IP)IP66/IP67
Suitable for safety functionsYes
Forced openingYes
Rated operation current Ie at DC-13, 230 V0.3A
Rated operation current Ie at AC-15, 24 V6A
Rated operation current Ie at AC-15, 230 V6A
Output electronicNo
With status indicationNo
Number of safety auxiliary contacts1
Width sensor31mm
Alignment of the control elementRoller cam straight
Ambient temperature during operating-25 - 70°C
Length of sensor33.5mm
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Degree of protection (NEMA)Other
Height of sensor61mm
Number of contacts as normally closed contact1
Switching function latchingNo
Diameter sensor0mm
